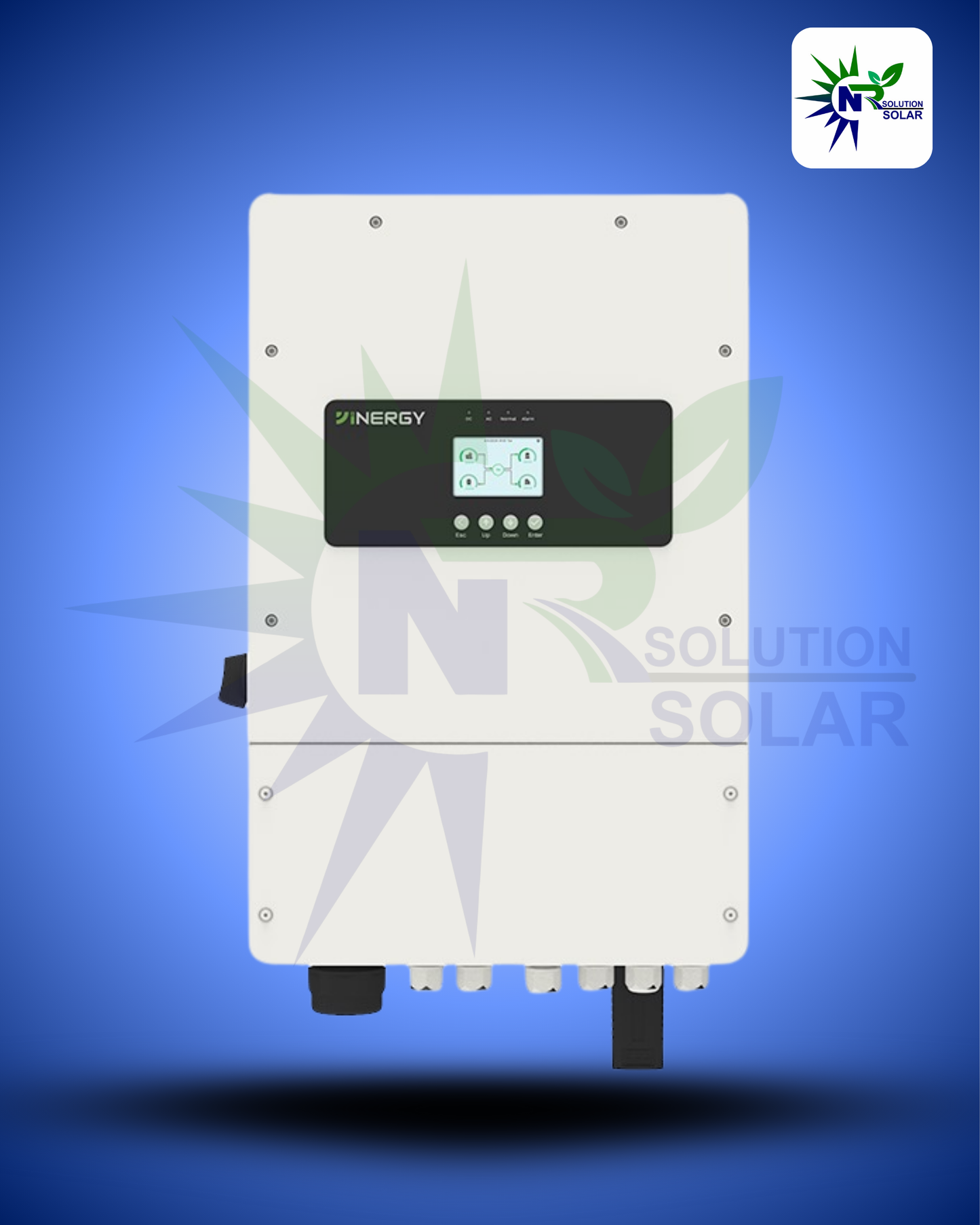

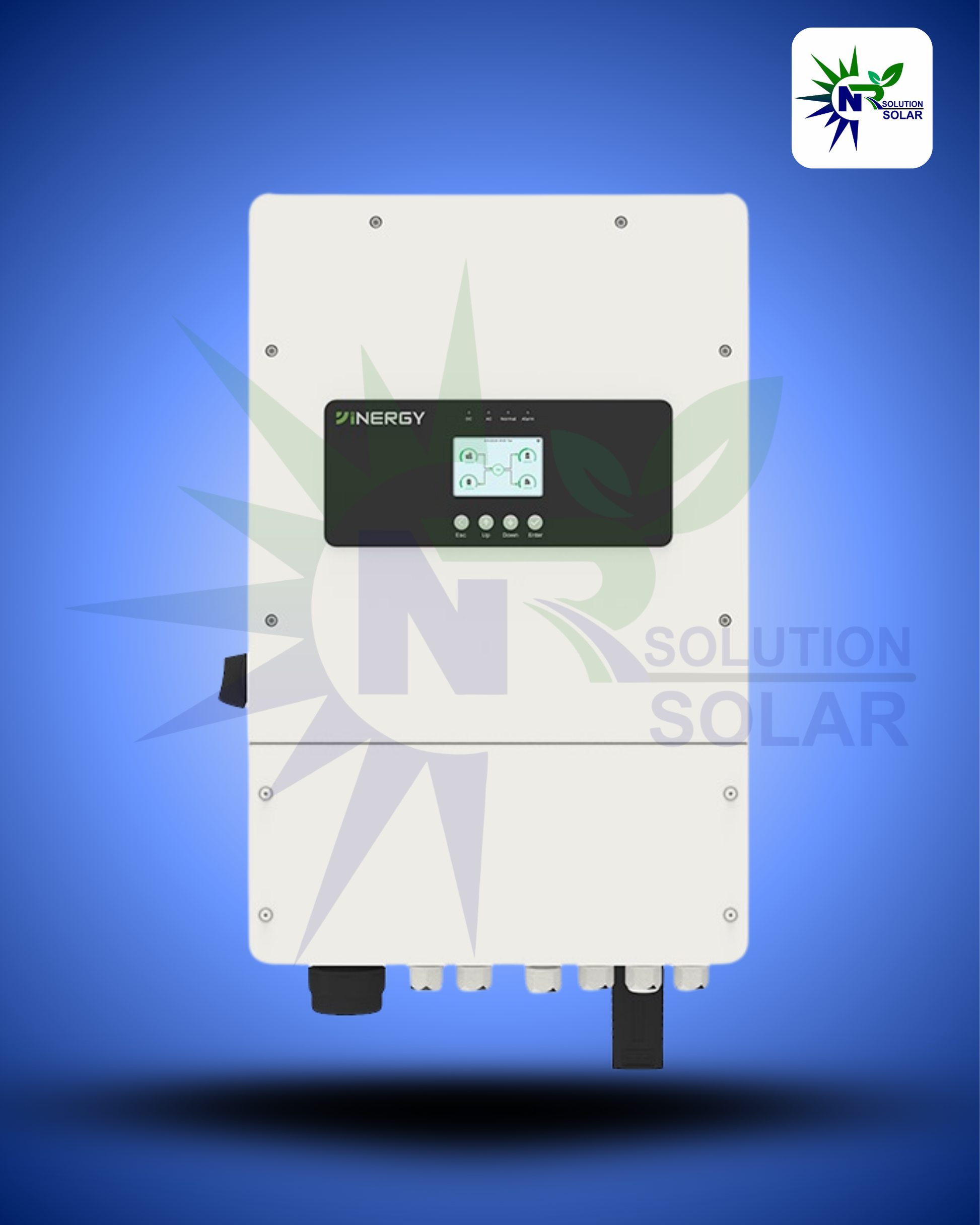

Yinergy hybrid 3.6KW
Yinergy hybrid 3.6KW
Regular price
Rs.99,999.00 PKR
Regular price
Rs.109,999.00 PKR
Sale price
Rs.99,999.00 PKR
Quantity
Couldn't load pickup availability
FOR CONTACT WHATSAPP NO: +92 339 0081624
Max. PV Array Power6000 W
Max. PV Input Power
4800 W
Max. PV Input Voltage
510 V
Rated Voltage
360 V
Start-up Voltage
80 V
MPPT Range
90 V - 425 V
Battery Type
Lead acid / Lithium
Rated Voltage
48 V
Voltage Range
40V-60V
Max.Current
75 A
Rated Output Power
3000 W
Max. Output Power
3300 VA
Max. Input Power
3300 VA
Peak Efficiency
96.00%
MPPT Efficiency
>99%
Communication Interface
LED + LCD / CAN, RS485, CT, NTC, WiFi
Type of Cooling
Intelligent Air Cooling
Size(L*H*W)/mm
411 × 631 × 236 mm
Weight/kg
28.6 kg
Operating Temperature Range
-25 ℃~ +60 ℃ ( >45 ℃ derating)
Ingress protection
IP65
