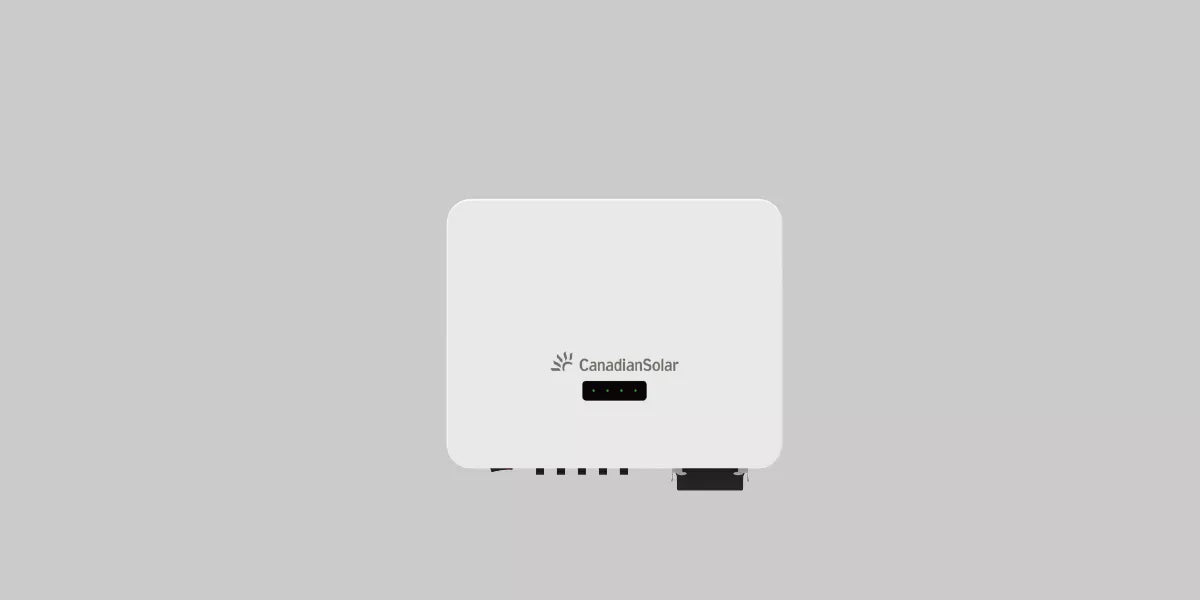

CANADIAN 10KW On-Grid Solar Inverter

FOR CONTACT WHATSAPP NO: +92 339 0081624

The Canadian 10KW On Grid Solar Inverter (Model: CSI-10KW-T400) is designed to optimize the efficiency of your on-grid solar energy system. With a robust input voltage of 1100V and a maximum PV power of 10KW, this inverter delivers reliable power output of 230/400V at 15.9A. Equipped with an intelligent redundant fan-cooling system, it ensures optimal performance even under high demand. The inverter features a single MPP tracker with an MPPT voltage range of 160-1000V for maximum power efficiency, and supports communication via RS485, Ethernet, and optional PLC. Certified under multiple international standards (IEC 62109, IEC 61000, etc.).

• 10KW Max Power Output – Optimized for on-grid solar systems.
• 1100V Input Voltage – High voltage handling for efficiency.
• 230/40...


  Type	on grid solar inverter
  input voltage	1100 v
  output voltage	230 / 400v
  output current	15.9 a
  output frequency	50hz/60hz
  size	310 x 563 x 219 mm
  certificate	iec 62109, iec 61000, iec 62116, iec 61727
  weight	17.8 kg
  max. pv power	10kw
  max. dc input voltage	1500v
  number of mpp trackers	1
  mppt voltage range	160 - 1000v
  max. input current (imp)	16a
  grid connection type	3w / n / pe
  cooling	intelligent redundant fan-cooling
  communication	rs485, ethernet, optional
